Description
Body Details:
-
- 2pc center section
- Solid, dual-carved caps
- Body is 16-1/2″ wide and 3″ thick overall
- Neck pocket precisely cut for precision joint
Neck Details:
-
- 22 frets, 24.75” scale
- Neck back profile is ‘59 Medium – 1st Fret .877” / 12th fret .976”
- Neck angle is 5.75 degrees
- Long tennon design cut for pickup
- 11 degree headstock angle
- 1-11/16” nut width
- 12″ fretboard radius
All PGK guitar kits ship unfinished / unpainted / unsealed, with no hardware, electronics, pickups or wiring. By default, no covers or pickguards are included. At checkout, you will be presented with options to add pickguards and covers to your order. Alternatively, you can purchase these on the “Pickguards & Covers” link under the “Guitar Kits” menu.
All set-neck guitars will by default ship without the neck glued into the body. At checkout, you will get the option to have us glue the neck into the body.
Option Specifications:
Wraparound bridge will have 7/16″ (11mm) diameter holes spaced 3.23″ (82mm) apart.
TOM / Stop Tail bridge will have 7/16″ (11mm) diameter holes spaced 2.91″ (74mm) apart. The tailpiece will have 7/16″ (11mm) diameter holes spaced 3.23″ (82mm) apart.
ABR1 TOM / Stop Tail bridge will have 1/8″ (3mm) diameter holes spaced 2.91″ (74mm) apart. The tailpiece will have 7/16″ (11mm) diameter holes spaced 3.23″ (82mm) apart.

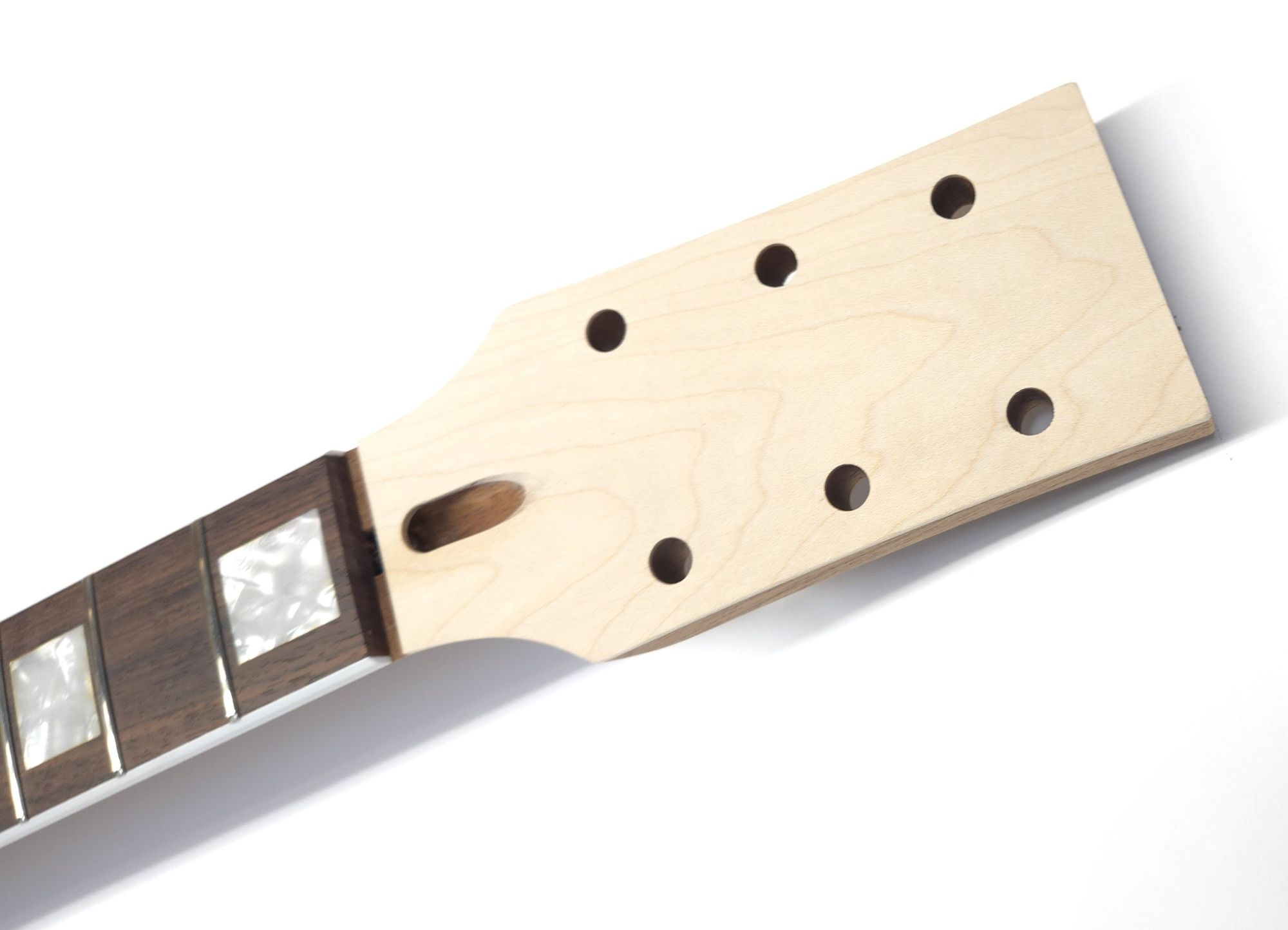

Paddle Headstock is 6.7” long and 3.375” wide
