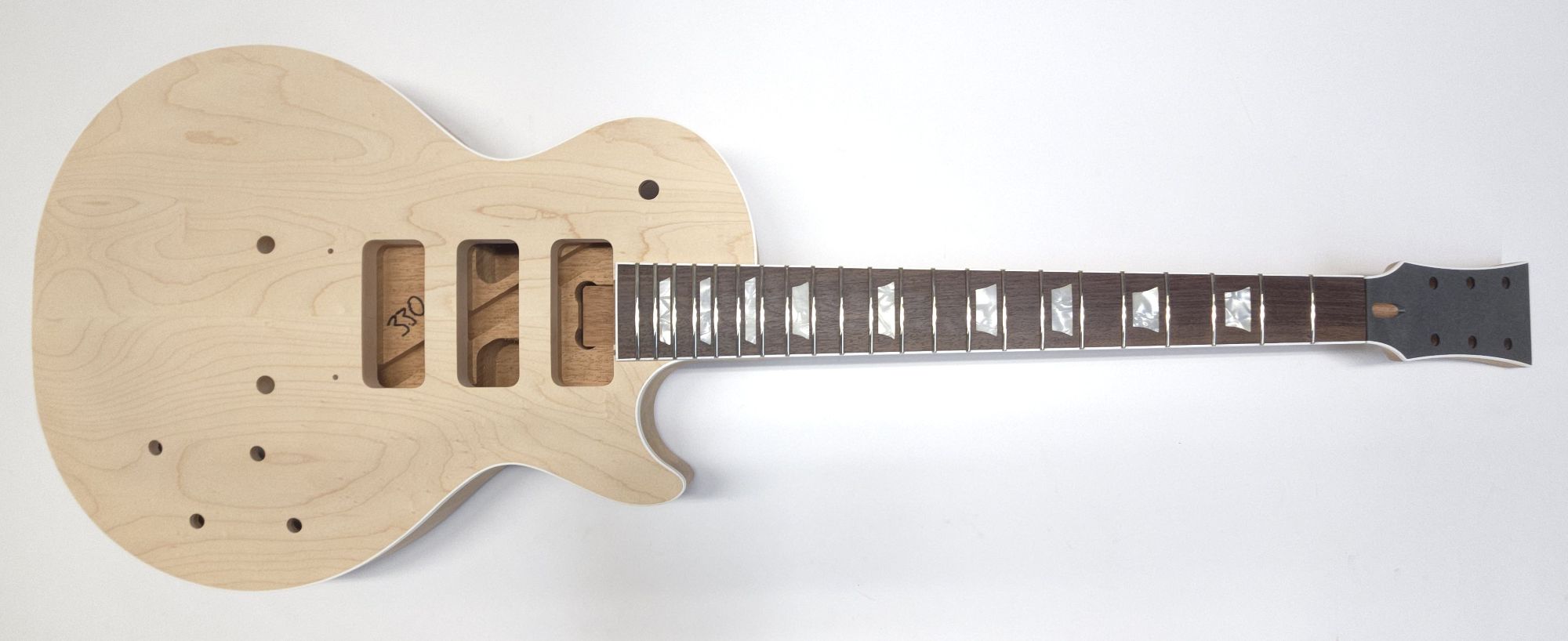

59 Carved Top – ABR – Triple P90 – White Binding

Description

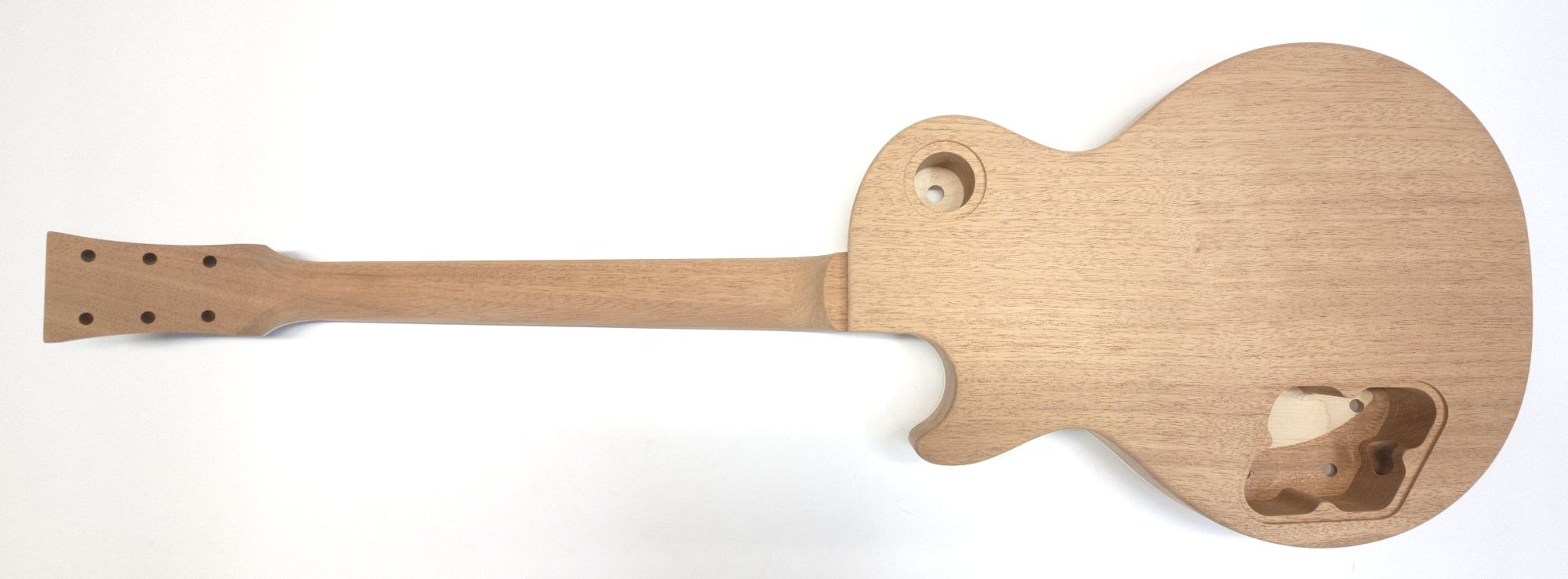

Body Details:

• African Mahogany 2pc body, 2-3/8” total body thickness
• Chambered and drilled for electronics
• Solid Maple carved top
• Standard control and switch cavities with 4 pots and switch
• Bridge stud to stud spacing: 2.91” / 74mm
• Tailpiece stud to stud spacing: 3.23” / 82mm
• Neck pocket precisely cut for precision joint

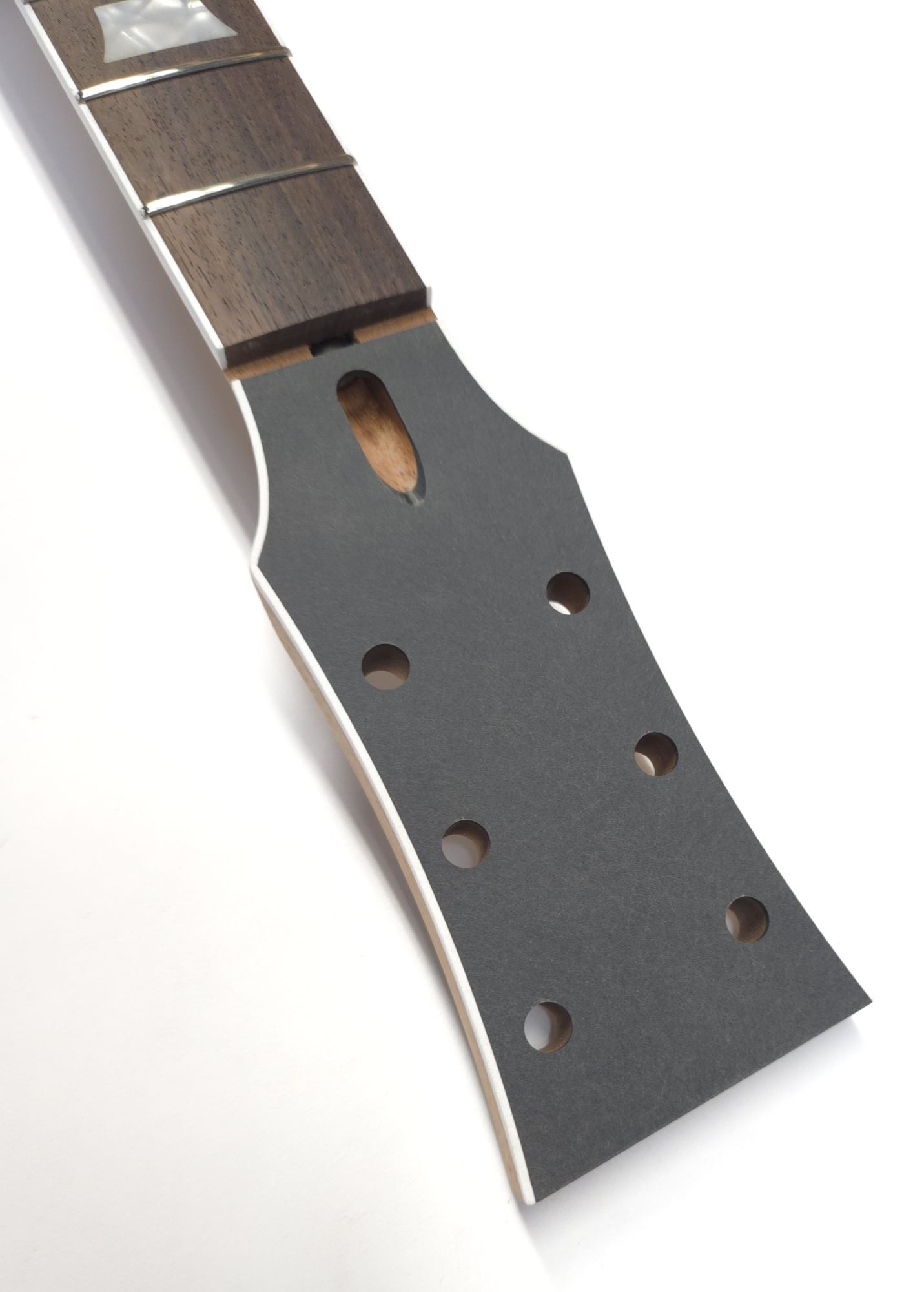

Neck Details:

• African Mahogany 1pc quartersawn neck
• Indian Rosewood fretboard with 22 frets, 24.75” scale
• Pearloid trapezoid inlays
• Jescar medium jumbo fret wire – .100” wide x .045” high
• Neck back profile is ‘59 Medium – 1st Fret .877” / 12th fret .976”
• 10mm tuner holes
• Neck angle is 4.4 degrees
• Long tennon design cut for pickup
• 11 degree headstock angle
• 1-11/16” nut width
• 12″ fretboard radius

All PGK guitar kits ship unfinished / unpainted / unsealed, with no hardware, electronics, pickups or wiring.  By default, no covers or pickguards are included.  At checkout, you will be presented with options to add pickguards and covers to your order.  Alternatively, you can purchase these on the “Pickguards & Covers” link under the “Guitar Kits” menu.

All set-neck guitars will by default ship without the neck glued into the body.  At checkout, you will get the option to have us glue the neck into the body.
