59 Carved Top Custom

$505.00

Want a truly magnificent guitar? Start here…

We use quality tonewoods and high-tech machinery to craft our instruments.  We only use solid wood and carefully matched glue joints.  Our fretwork is second to none, and each component is adjusted and fitted for a perfect match.

SKU: MTO-59CT Category:

Description

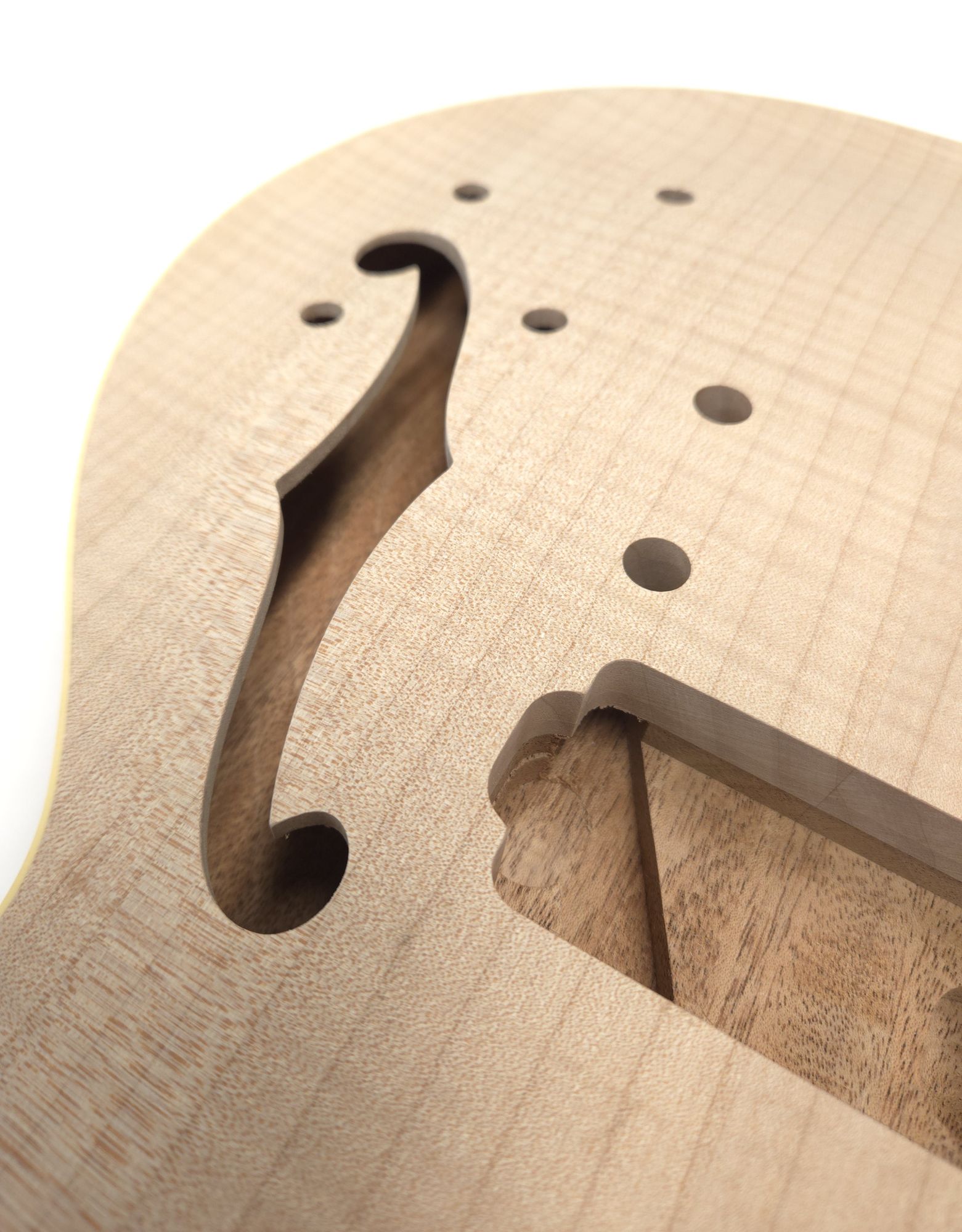

Body Details:

  • 2-3/8” total body thickness
  • Drilled for electronics
  • Solid carved top
  • Neck pocket precisely cut for precision joint

Neck Details:

  • 22 frets, 24.75” scale
  • Neck angle is 4.4 degrees
  • Long tennon design cut for pickup
  • 11 degree headstock angle
  • 1-11/16” nut width
  • 12″ fretboard radius

All PGK guitar kits ship unfinished / unpainted / unsealed, with no hardware, electronics, pickups or wiring.  By default, no covers or pickguards are included.  At checkout, you will be presented with options to add pickguards and covers to your order.  Alternatively, you can purchase these on the “Pickguards & Covers” link under the “Guitar Kits” menu.

All set-neck guitars will by default ship without the neck glued into the body.  At checkout, you will get the option to have us glue the neck into the body.

Option Specifications:

60’s Slim – 1st Fret .8″ / 12th fret .885″
59 Medium – 1st Fret .877″ / 12th fret .976″
JR Huge – 1st Fret .955″ / 12th fret 1.125″

Wraparound bridge will have 7/16″ (11mm) diameter holes spaced 3.23″ (82mm) apart.

TOM / Stop Tail bridge will have 7/16″ (11mm) diameter holes spaced 2.91″ (74mm) apart. The tailpiece will have 7/16″ (11mm) diameter holes spaced 3.23″ (82mm) apart.

ABR1 TOM / Stop Tail bridge will have 1/8″ (3mm) diameter holes spaced 2.91″ (74mm) apart. The tailpiece will have 7/16″ (11mm) diameter holes spaced 3.23″ (82mm) apart.

Paddle Headstock is 6.7” long and 3.375” wide

Additional information

Shipping Weight 9 lbs
Dimensions 29 × 17 × 3 in
